Product Details:
|
| Applicable Industries: | Farms, Food & Beverage Factory, Food & Beverage Shops, Manufacturing Plant | Showroom Location: | India, Indonesia, Philippines, Russia, Saudi Arabia, South Africa, South Korea, Thailand, Viet Nam |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Pressure Vessel, Pump | Condition: | New |
| Voltage: | 380V, 3P | Power: | 1KW |
| Weight: | 2100 KG | Dimension(L*W*H): | 1100*1200*1500MM |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |

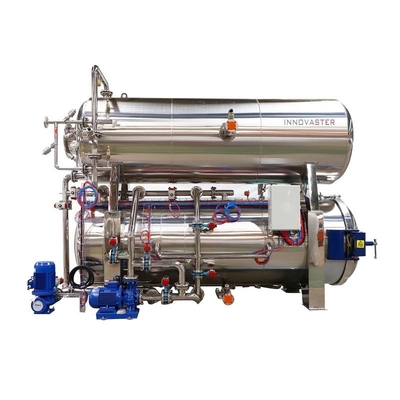

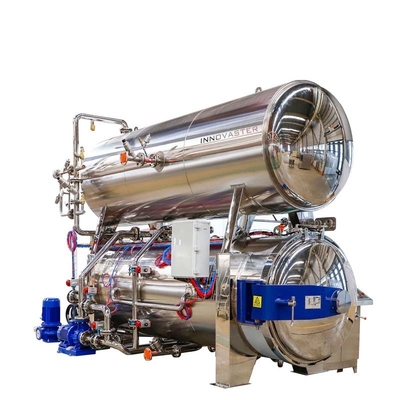

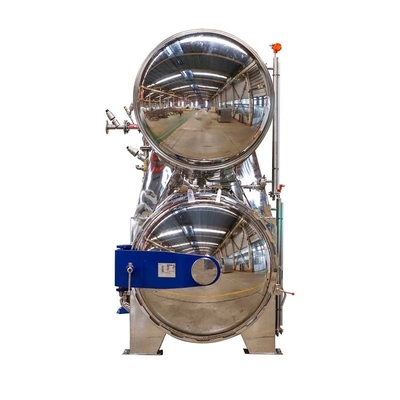

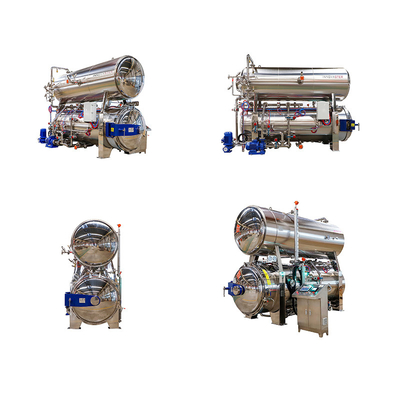

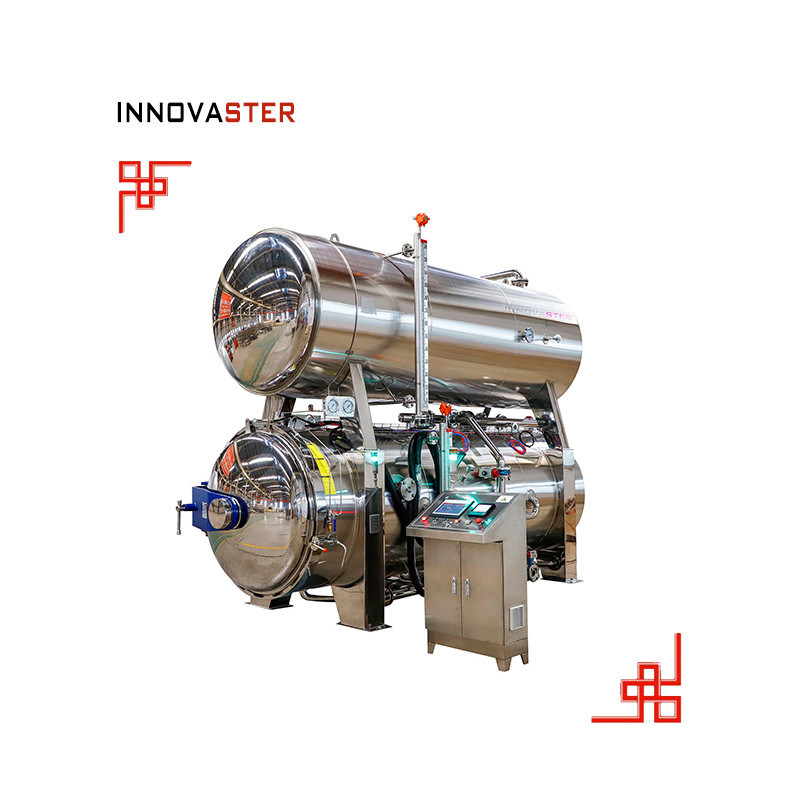

| Product Name: | High Temperature High Pressure Food Processing Retort Machine | Raw Material: | 304 Stainless Steel |
| Application: | High Temperature Sterilization | HS CODE: | 841989 |
| Operation: | Automatic Batch Retort | Property: | Physical Sterilization |
| Auxiliary: | Boiler, Cooling Tower, Air Compressor | Structure: | Cylindrical Pressure Vessel |
| Type: | High Temperature Sterilization | Medium: | Steam, Water, Air |
Model | Dia(mm) | Effective L(mm) | Baskets | Volume (CBM) | Design Te.(Degree.C) | Design Pre. (MPA) | Test Pre.(Mpa) |
WI-1002 | 1000 | 1800 | 2 | 1.65 | 147 | 0.35 | 0.44 |
WI-1003 | 1000 | 2400 | 3 | 2.12 | 147 | 0.35 | 0.44 |
WI-1203 | 1200 | 3000 | 3 | 3.78 | 147 | 0.35 | 0.44 |
WI-1204 | 1200 | 3600 | 4 | 4.45 | 147 | 0.35 | 0.44 |
WI-1205 | 1200 | 4500 | 5 | 5.48 | 147 | 0.35 | 0.44 |
WI-1403 | 1400 | 3000 | 3 | 8.2 | 147 | 0.35 | 0.44 |
WI-1404 | 1400 | 4000 | 4 | 6.77 | 147 | 0.35 | 0.44 |
WI-1405 | 1400 | 5000 | 5 | 8.31 | 147 | 0.35 | 0.44 |
