Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW

Large Image : Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Innovaster

Payment & Shipping Terms:

Price:	$25,680.00 - $29,680.00/sets

Contact Now

Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW

Description

Applicable Industries:	Farms, Food & Beverage Factory, Food & Beverage Shops, Manufacturing Plant	Showroom Location:	India, Indonesia, Philippines, Russia, Saudi Arabia, South Africa, South Korea, Thailand, Viet Nam
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2021	Warranty Of Core Components:	1 Year
Core Components:	PLC, Pressure Vessel, Pump	Condition:	New
Voltage:	380V, 3P	Power:	1KW
Weight:	2100 KG	Dimension(LWH):	110012001500MM
Warranty:	1 Year	Key Selling Points:	Multifunctional
Product Name:	Autoclave Steam Sterilization	Raw Material:	304 Stainless Steel
Application:	High Temperature Sterilization	HS CODE:	841989
Operation:	Automatic Batch Retort	Property:	Physical Sterilization
Auxiliary:	Boiler, Cooling Tower, Air Compressor	Structure:	Cylindrical Pressure Vessel
Type:	High Temperature Sterilization	Medium:	Steam, Water, Air

Product Description

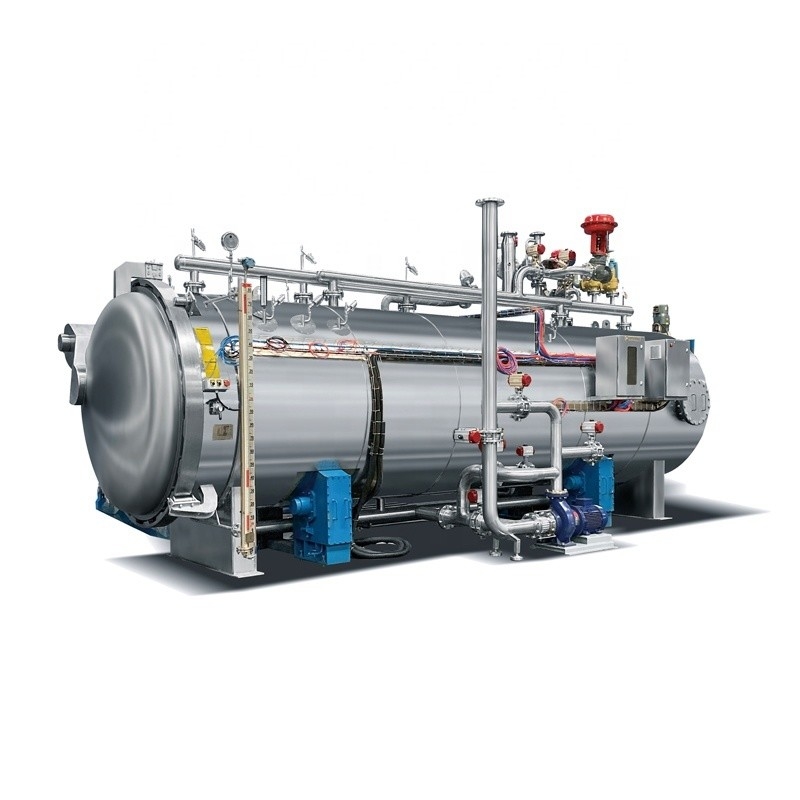

Horizontal food autoclave steam sterilization cooking retort machine

Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW 0

Brief Introduction

The Saturated Steam Process is the oldest method, in the process air is considered an insulating medium that all air be evacuated from the retort by flooding the vessel with steam and allowing the air to escape through vent valves.

In a steam rocess these steps are:

Come Up Vent Open (A Sterilization Step)
Come Up Vent Closed (A Sterilization Step)
Cook (A Sterilization Step)
Pressure Cool Fill
Pressure Cool
Atmospheric Cool
Drain (Not Recipe-Configurable)

Parameters

Model	Dia(mm)	Effective L(mm)	Baskets	Volume (CBM)	Design Te.(Degree.C)	Design Pre. (MPA)	Test Pre.(Mpa)
S-0902	900	1800	2	1.32	147	0.35	0.44
S-1003	1000	2400	3	2.12	147	0.35	0.44
S-1203	1200	3000	3	3.78	147	0.35	0.44
S-1204	1200	3600	4	4.45	147	0.35	0.44
S-1205	1200	4500	5	5.48	147	0.35	0.44
S-1403	1400	3000	3	8.2	147	0.35	0.44
S-1404	1400	4000	4	6.77	147	0.35	0.44
S-1405	1400	5000	5	8.31	147	0.35	0.44
S-1406	1400	6000	6	9.85	147	0.35	0.44
S-1604	1600	4500	4	9.95	147	0.35	0.44
S-1605	1600	5700	5	12.36	147	0.35	0.44
S-1606	1600	6800	6	14.57	147	0.35	0.44

Details Focused

Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW 1

Process Flow

Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW 2

ABOUT

Innovaster is a fast growing company of committed people with more than 20 years experience and passion. Innovaster has three associate factories who are the leaders in their respective fields for the upstream and downstream equipment. All factories are selected and integrated to keep the Innovaster as the innovative solution provider for the food processors. To this end, we at Innovaster remain invested in our Industry through our people and our equipment, to strive for innovative solutions and improvement in processing, packaging and thermal processing technology, not forgetting to deliver on cost effective solutions to our customers.

Thanks to its experience in international markets, qualified employees and strong business partners, Innovaster has become the most reliable and preferred solution partner in food processing facilities for prestigious public and private corporations all over the world. We will be happy to meet you at our operational headquarter in Zhucheng, China.

Our Advantages

Our Advantages

Design and Construction

Innovaster has been dedicated to manufacturing and process optimization to serve food industries.

Safety

We have designed and manufactured food processing machinery with special focus on ensuring the safety.

Training & Customer Care Service

We provide training, general maintenance, troubleshooting etc.

Delivery On Time

Innovaster products are built, and tested to meet our customer's delivery and installation schedule.

Technical Support

Technical assistance on installation and site commissioning.

5

Advantages

Certifications

OUR CERTIFICATES

Physical Sterilization Horizontal Food Autoclave Steam Sterilization Cooking Retort Machine 1KW 11
