Product Details:
|
| Applicable Industries: | Farms, Food & Beverage Factory, Food & Beverage Shops, Manufacturing Plant | Showroom Location: | India, Indonesia, Philippines, Russia, Saudi Arabia, South Africa, South Korea, Thailand, Viet Nam |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Pressure Vessel, Pump | Condition: | New |
| Voltage: | 380V, 3P | Power: | 1KW |
| Weight: | 2100 KG | Dimension(L*W*H): | 1100*1200*1500MM |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |

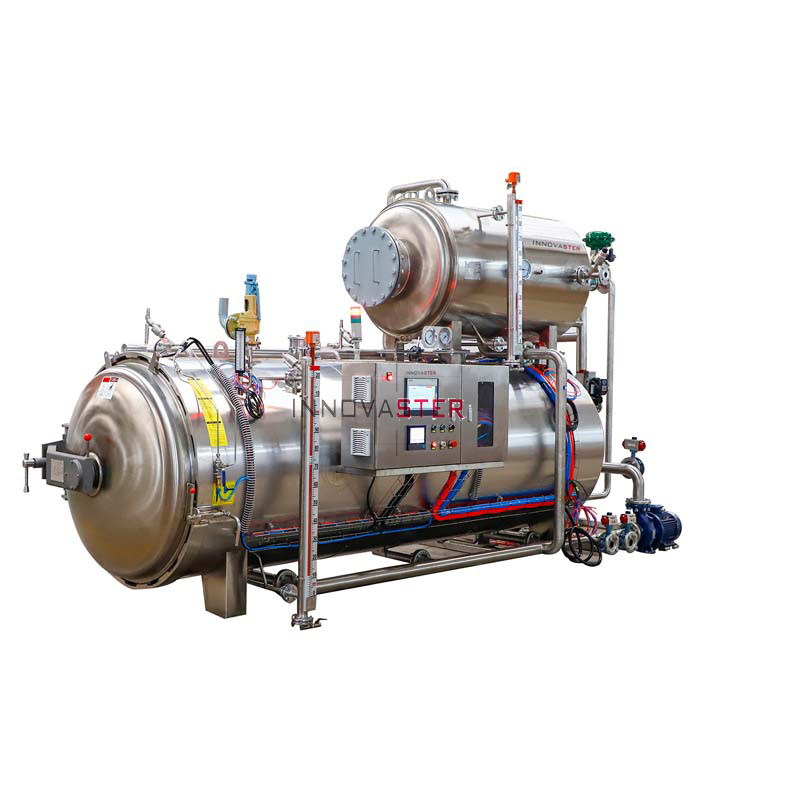

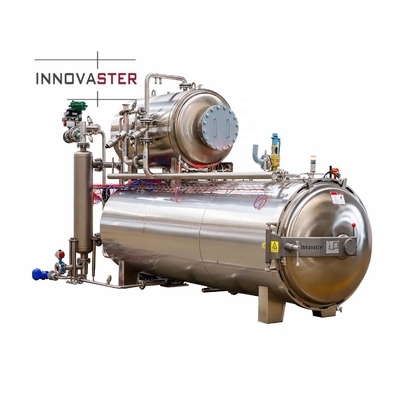

| Product Name: | High Temperature High Pressure Food Processing Retort Machine | Raw Material: | 304 Stainless Steel |
| Application: | High Temperature Sterilization | HS CODE: | 841989 |
| Operation: | Automatic Batch Retort | Property: | Physical Sterilization |
| Auxiliary: | Boiler, Cooling Tower, Air Compressor | Structure: | Cylindrical Pressure Vessel |
| Type: | High Temperature Sterilization | Medium: | Steam, Water, Air |
Brief Introduction
Innovaster Water Spray process is an overpressure process, it's different from Saturated Steam process in that air can be introduced into the vessel during sterilization. Preheat Tank is an OPTIONAL to preheat the process water while operator is entering the process recipe for hot filling products. During process, water is sprayed over the containers from different angles, steam can go through the other loop of the heat exchanger to heat the process water or directly injected into vessel.
Water Spray process can be used for various packages thermal processing, excellent temperature distribution and efficient heat transfer since Innovaster selects all top-class brands components to provide the high-quality retorts and service to our customers worldwide and because of our know-how. HMI controls provide a user-friendly interface to retort control.
In a Water Spray process these steps are:
1.Prepare Tank (OPTIONAL – if an external preheat water tank is used)
2.Come Up Fill (A Sterilization Step)
3.Come Up (A Sterilization Step)
3.Cook (A Sterilization Step)
4.Pressure Cool
5.Atmospheric Cool
6.Drain
Parameters
| Model | Dia(mm) | Effective L(mm) | Baskets | Volume (CBM) | Design Te.(Degree.C) | Design Pre. (MPA) | Test Pre.(Mpa) |
| Ws-0902 | 900 | 1800 | 2 | 1.32 | 147 | 0.35 | 0.44 |
| Ws-1003 | 1000 | 2400 | 3 | 2.12 | 147 | 0.35 | 0.44 |
| Ws-1203 | 1200 | 3000 | 3 | 3.78 | 147 | 0.35 | 0.44 |
| Ws-1204 | 1200 | 3600 | 4 | 4.45 | 147 | 0.35 | 0.44 |
| Ws-1205 | 1200 | 4500 | 5 | 5.48 | 147 | 0.35 | 0.44 |
| Ws-1403 | 1400 | 3000 | 3 | 8.2 | 147 | 0.35 | 0.44 |
| Ws-1404 | 1400 | 4000 | 4 | 6.77 | 147 | 0.35 | 0.44 |
| Ws-1405 | 1400 | 5000 | 5 | 8.31 | 147 | 0.35 | 0.44 |
| Ws-1406 | 1400 | 6000 | 6 | 9.85 | 147 | 0.35 | 0.44 |
| Ws-1604 | 1600 | 4500 | 4 | 9.95 | 147 | 0.35 | 0.44 |
| Ws-1605 | 1600 | 5700 | 5 | 12.36 | 147 | 0.35 | 0.44 |
| Ws-1606 | 1600 | 6800 | 6 | 14.57 | 147 | 0.35 | 0.44 |
