Product Details:
|
| Applicable Industries: | Farms, Food & Beverage Factory, Food & Beverage Shops, Manufacturing Plant | Showroom Location: | India, Indonesia, Philippines, Russia, Saudi Arabia, South Africa, South Korea, Thailand, Viet Nam |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Pressure Vessel, Pump | Condition: | New |
| Voltage: | 380V, 3P | Power: | 1KW |
| Weight: | 2100 KG | Dimension(L*W*H): | 1100*1200*1500MM |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |

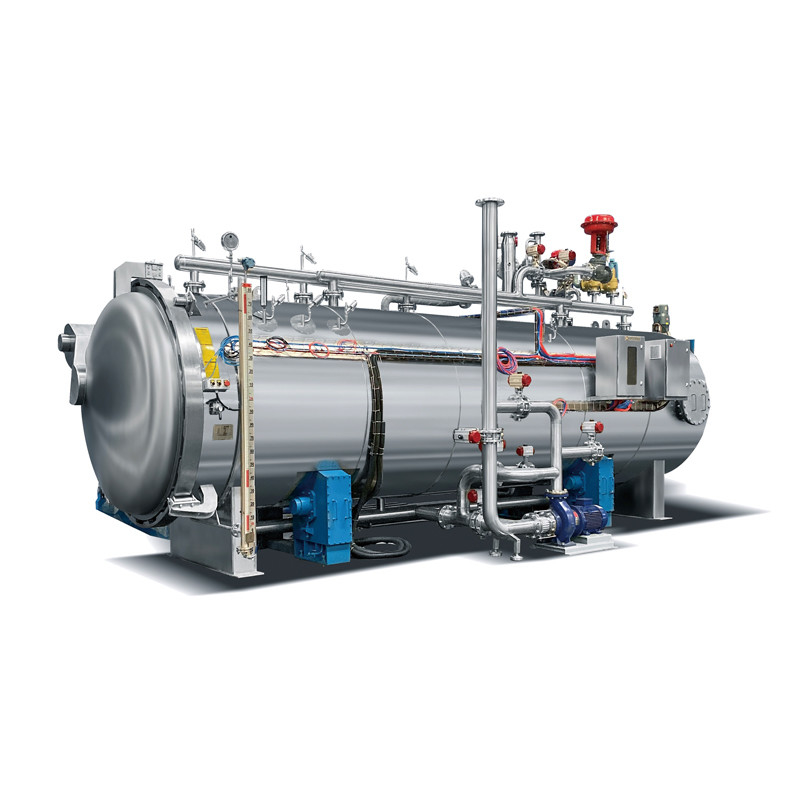

| Product Name: | Steam Air Retort | Raw Material: | 304 Stainless Steel |
| Application: | High Temperature Sterilization | HS CODE: | 841989 |
| Operation: | Automatic Batch Retort | Property: | Physical Sterilization |
| Auxiliary: | Boiler, Cooling Tower, Air Compressor | Structure: | Cylindrical Pressure Vessel |
| Type: | High Temperature Sterilization | Medium: | Steam, Water, Air |
Main Features
The rotary retorts are used to process the food contents in order to accelerate the heat transfer inside the container, with a movement of food inside to provides even better product quality and process efficiency.

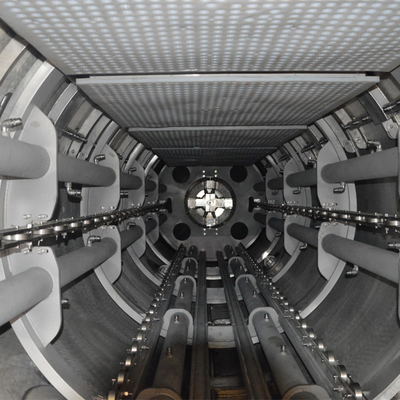

The baskets or stacks of trays are clamped individually to ensure that the load is well supported with no damage to the containers or baskets and trays. The clamping mechanisms as well as other moving parts like rotor shaft or supporting rollers (trunnions) are designed for heavy duty and long life.
•Sterilization of products in aluminum and tinplate cans, glass jars pouches and trays;
•Excellent homogeneity inside the machine and a gentile product treatment;
•Reduction of the sterilization time as effect of the cynetic force of the rotation combined with the both fixed and rotating spryers;
•Unaltered product organoleptic properties.
Parameters
| Model | Dia(mm) | Effective L(mm) | Baskets | Design Te.(Degree.C) | Design Pre. (MPA) | Test Pre.(Mpa) |
| R-1302 | 1300 | 2400 | 2 | 147 | 0.35 | 0.44 |
| R-1303 | 1300 | 3300 | 3 | 147 | 0.35 | 0.44 |
| R-1304 | 1300 | 4200 | 4 | 147 | 0.35 | 0.44 |
| R-1503 | 1500 | 3600 | 3 | 147 | 0.35 | 0.44 |
| R-1504 | 1500 | 4500 | 4 | 147 | 0.35 | 0.44 |
| R-1505 | 1500 | 5250 | 5 | 147 | 0.35 | 0.44 |
