Product Details:
|
| Applicable Industries: | Farms, Food & Beverage Factory, Food & Beverage Shops, Manufacturing Plant | Showroom Location: | India, Indonesia, Philippines, Russia, Saudi Arabia, South Africa, South Korea, Thailand, Viet Nam |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Pressure Vessel, Pump | Condition: | New |
| Voltage: | 380V, 3P | Power: | 1KW |
| Weight: | 2100 KG | Dimension(L*W*H): | 1100*1200*1500MM |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Product Name: | Steam Air Retort | Raw Material: | 304 Stainless Steel |
| Application: | High Temperature Sterilization | HS CODE: | 841989 |
| Operation: | Automatic Batch Retort | Property: | Physical Sterilization |
| Auxiliary: | Boiler, Cooling Tower, Air Compressor | Structure: | Cylindrical Pressure Vessel |
| Type: | High Temperature Sterilization | Medium: | Steam, Water, Air |
Main Features
1. Thanks to its fan system, the steam-air retort doesn't need to drive air by steam any more as the fan rotation can break the cold air and force steam to travel parallelly with trays. Thus steam can circulate horizontally and evenly in retort to guarantee faster heat penetration and more uniform sterilization effect.
2. As there is no preheating during sterilization process, thus it saves the start the time and greatly reduces the cycle time of sterilization.
3. As no need of process water for heating and sterilization and no need of steam to heat the process water, so it can greatly save steam and water.

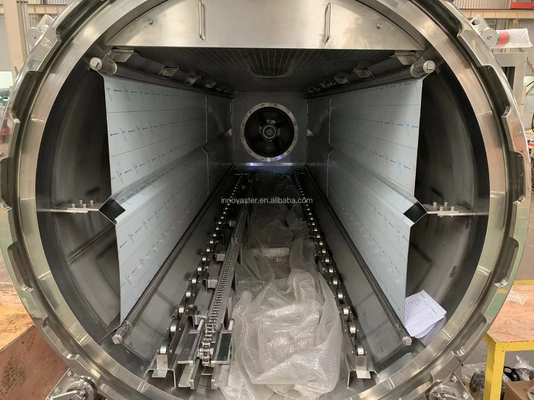

4. The fan in retort forces the steam traveling from one end of the tank to the other end, so it can perfectly reach all the products and always keep the steam evenly circulate in retort to ensure good sterilization effect without cold point.
5. The steam & air retort is more flexible and accurate in pressure and temperature control, and it can adopt counter pressure for cooling; so its application is broader and is applicable to flexible packaging, bottles, cans , high temperature resistant plastic as well alumnium packaging.
Parameters
| Model | Dia(mm) | Effective L(mm) | Baskets | Design Te.(Degree.C) | Design Pre. (MPA) | Test Pre.(Mpa) |
| SA-1203 | 1200 | 3000 | 3 | 147 | 0.35 | 0.44 |
| SA-1204 | 1200 | 3900 | 4 | 147 | 0.35 | 0.44 |
| SA-1205 | 1200 | 4800 | 5 | 147 | 0.35 | 0.44 |
| SA-1403 | 1400 | 3500 | 3 | 147 | 0.35 | 0.44 |
| SA-1404 | 1400 | 4500 | 4 | 147 | 0.35 | 0.44 |
| SA-1405 | 1400 | 5600 | 5 | 147 | 0.35 | 0.44 |
| SA-1406 | 1400 | 6600 | 6 | 147 | 0.35 | 0.44 |
