Product Details:
|
| Condition: | New | Applicable Industries: | Food & Beverage Factory, Hotels, Restaurant |
|---|---|---|---|
| Weight (KG): | 615 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gear, PLC | Type: | Cooking Equipment |
| Warranty: | 1 Year | Application Fields: | Vegetable Processing Plant |
| Machinery Capacity: | 50-600L | Machinery Function: | Mixing And Cooking |
| Function: | Boiling And Mixing | Application: | Porridges, Soups, Dumplings, Cooking And Stew With Vegetables. |
| Keywords: | Jacketed Kettle | Material: | Stainless Steel 304 |
| Heating Way: | Electric Or Steam Or Oil | Capacity: | 100-600L, Customized |
| Voltage: | 220V/230V/380V/415V/440V | Rotate Speed: | 1-100RPM |
| Main Structure: | Pot Body, Heating System, Tilting System.legs |
| Function | Boiling and mixing |
| Application | Porridges, soups, dumplings, cooking and stew with vegetables. |
| Keywords | Jacketed Kettle |
| Material | Stainless Steel 304 |
| Heating way | Electric or steam or oil |
| Capacity | 100-600L, Customized |
| Voltage | 220V/230V/380V/415V/440V |
| Rotate speed | 1-100RPM |
| Main structure | Pot body, heating system, tilting system.legs |
We provide universal cooking mixer Kettle with different capacity 50L-800L and with different heating sources.
There are a scraper and agitator are assembled to the mixing system. Scraper is made of food grade PTFE and agitator are
removable for cleaning .The heating source can be steam, electric(oil), or gas.
1. High quality food grade 304 stainless steel structure and stamping molding process,fully meet the requirements of the food
hygiene..
2.Multiple heating options, steam heating type, electric heated hot oil heating type, gas heating type and electric induction
heating type.
3.Tilting type and fixed modes as options.
4.Product capacity from 100L to 600L, customized with agitator.
6 Compact structure for convenient operation and maintenance, long service life.
| Volume(L) | Jacketed Pressure(Mpa) | Dia(mm) | Thickness (mm) | Heating Source |
| 50 | <0.2 | 500 | 4 | steam/electric(oil)/gas |
| 100 | 700 | 4 | steam/electric(oil)/gas | |
| 150 | 800 | 4 | steam/electric(oil)/gas | |
| 200 | 900 | 5 | steam/electric(oil)/gas | |
| 300 | 1000 | 5 | steam/electric(oil)/gas | |
| 400 | 1100 | 5 | steam/electric(oil)/gas | |
| 500 | 1200 | 5 | steam/electric(oil)/gas | |
| 600 | 1200 | 5 | steam/electric(oil)/gas |

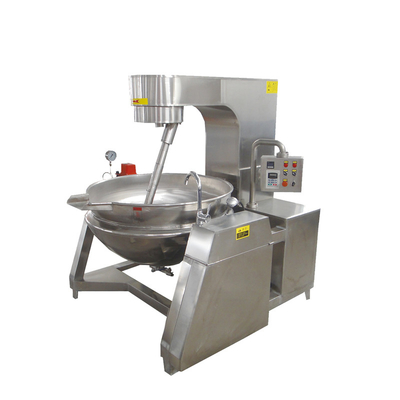

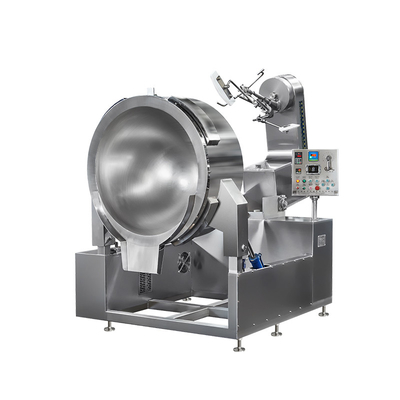

Planetary Jacketed Kettle
PTFE crapper and adjustable blade, easy to remove.
SUS304 pot, planetary stirring,uniform heating and non sticking.
Hydraulic lifting system to handle products and make it easy to operate.
Mixing arm tilted backwards to 90° automatically before discharging.
Planetary kettle mixer offers maximum flexibility with every kind of product making it possible to roast, braise, stir fry, boil & cook all sorts of dish such as bean paste, fillings, jam, sauces, gravy, sugar, soup, congee, soft candy, crispy candy, fried vegetable & meat, nougat candy, custard,cream, chocolate, lemonade,mochi, snacks(pop corn, energy bar), Chinese dishes,beverage etc.
