Product Details:
|
| Condition: | New | Applicable Industries: | Food & Beverage Factory, Hotels, Restaurant |
|---|---|---|---|
| Weight (KG): | 615 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gear, PLC | Type: | Cooking Equipment |
| Warranty: | 1 Year | Application Fields: | Vegetable Processing Plant |
| Machinery Capacity: | 50-600L | Machinery Function: | Mixing And Cooking |
| Function: | Boiling And Mixing | Application: | Porridges, Soups, Dumplings, Cooking And Stew With Vegetables. |
| Keywords: | Jacketed Kettle | Material: | Stainless Steel 304 |
| Heating Way: | Electric Or Steam Or Oil | Capacity: | Can Be Customize |
| Voltage: | 220V/230V/380V/415V/440V | Rotate Speed: | 1-100RPM |
| Main Structure: | Pot Body, Heating System, Tilting System.legs |

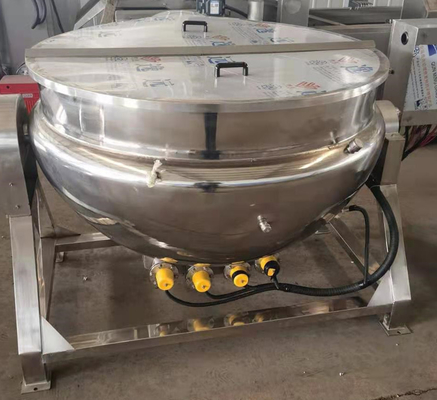

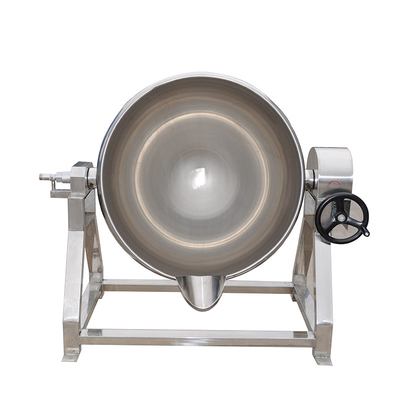

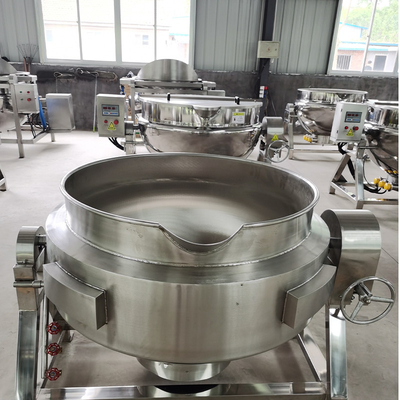

The Jacketed kettle is a 2/3 tilting jacketed kettle with a variable speed mixing system and widely used in sauce making,candy, sugar,
cake, juice, soup, milk, oil, sauce, meat, fish, vegetable, caned food, fruit, medicine etc.

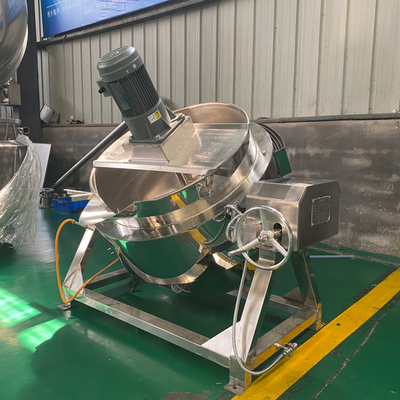

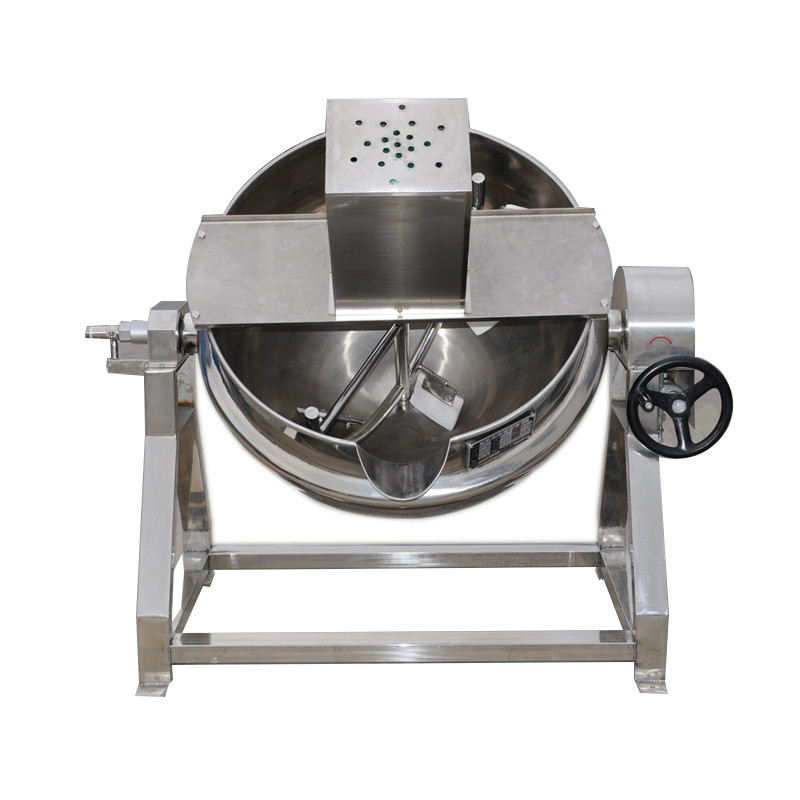

There are a scraper and agitator are assembled to the mixing system. Scraper is made of food grade PTFE and agitator are
removable for cleaning .The heating source can be steam, electric(oil), or gas.
1. High quality food grade 304 stainless steel structure and stamping molding process,fully meet the requirements of the food
hygiene..
2.Multiple heating options, steam heating type, electric heated hot oil heating type, gas heating type and electric induction
heating type.

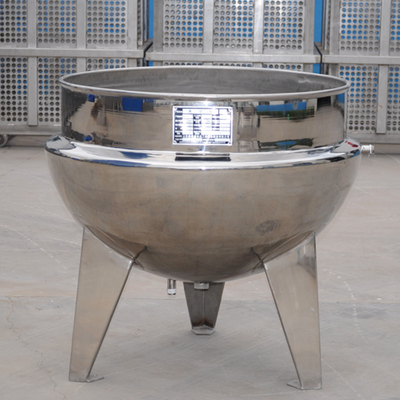

3.Tilting type and fixed modes as options.
4.Product capacity from 100L to 600L, customized with agitator.
6 Compact structure for convenient operation and maintenance, long service life.
| Volume(L) | Jacketed Pressure(Mpa) | Dia(mm) | Thickness (mm) | Heating Source |
| 50 | <0.2 | 500 | 4 | steam/electric(oil)/gas |
| 100 | 700 | 4 | steam/electric(oil)/gas | |
| 150 | 800 | 4 | steam/electric(oil)/gas | |
| 200 | 900 | 5 | steam/electric(oil)/gas | |
| 300 | 1000 | 5 | steam/electric(oil)/gas | |
| 400 | 1100 | 5 | steam/electric(oil)/gas | |
| 500 | 1200 | 5 | steam/electric(oil)/gas | |
| 600 | 1200 | 5 | steam/electric(oil)/gas |
Focus On Every Details of Processing
Good quality is worth having
PTFE Scraping system to ensure thorough mix of all materials inside, imitation of manual stirring
Variable mixing speed to satisfy various processing procedures.
Automatic and semi auto control for gas/electric induction/ steam/thermal oil heating jacketed kettle.
