Product Details:
|
| Type: | Vacuum Packing Machine, Chamber Packaging Machine | Applicable Industries: | Building Material Shops, Construction Works , Food & Beverage Factory, Hotels, Machinery Repair Shops, Manufacturing Plant, Retail |
|---|---|---|---|
| Showroom Location: | Indonesia, None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Engine, Gear, Gearbox, Motor, PLC, Pump | Condition: | New |
| Application: | APPAREL, Food, Machinery & Hardware | Packaging Type: | Bags, Belt, Film, Pouch |
| Packaging Material: | Metal, Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380/420V |
| Weight: | 256 KG | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Packing Speed: | 2-3cycle/min |
| Vacuum: | Less Than 240Pa | Film Material: | Plastic |
| Machine Material: | Stainless Steel | Sealing Bar Distance (mm): | 400 -700 |
| Material: | 304 Stainless Steel | Date Print And Gas Flush: | Available |
| Width Of The Seal: | 8mm | Marketing Type: | Ordinary Product |
SUS304 food grade stainless steel structure,5mm thickness;
Digital time relay, CHINT AC contactor
Each seal wire is controlled individually by a set of transformer, time relay, A.C. contactor, ensures temperature uniformity
of heating bar; Thermal fuse is installed to protect heating bar/sealing wire, reduce maintenance cost.
Equipped with braking wheels for easy machine’s moving.
| Model No. | DZ600/2S | DZ600/4S | DZ800/2S | DZ850/2S |
| Chamber Size (mm) | 690*620*160 | 720*620*90 | 920*780*220 | 970*780*220 |
| Sealing Bar | 600mm*2 | 600mm*4 | 800mm*2 | 850mm*2 |
| Packing Speed | 3-6 cycles/minute | 3-6 cycles/minute | 3-6 cycles/minute | 3-6 cycles/minute |
| Power Supply | 380V/50HZ/3Phase, or customize | |||
| Overall Size (mm) | 1400*720*950 | 1420*800*950 | 1835*910*1060 | 1935*960*1060 |
| Pack MAX. Length (mm ) | 490 | 260 | 620 | 630 |
| Vacuum Pump | BUSCH 100 | BUSCH 100 | BUSCH 200 | BUSCH 200 |

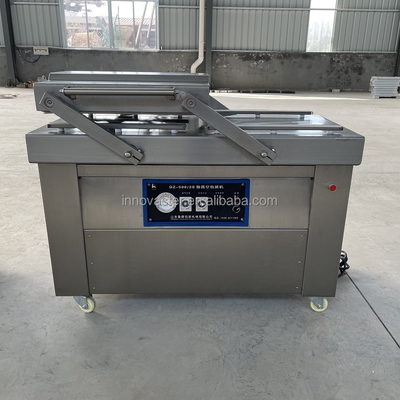

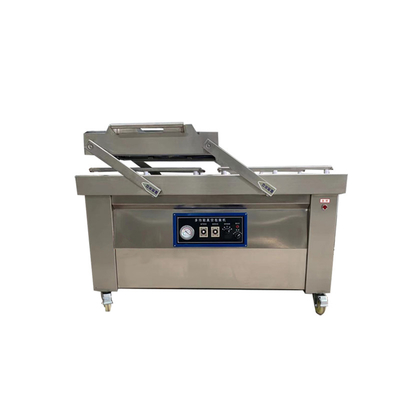

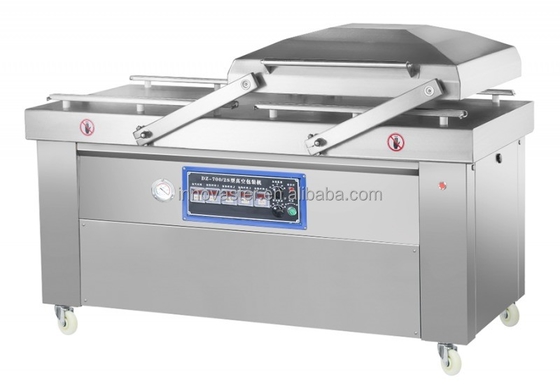

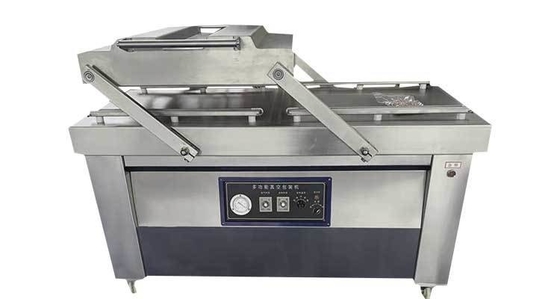

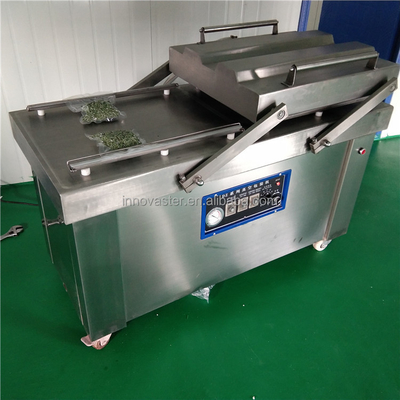

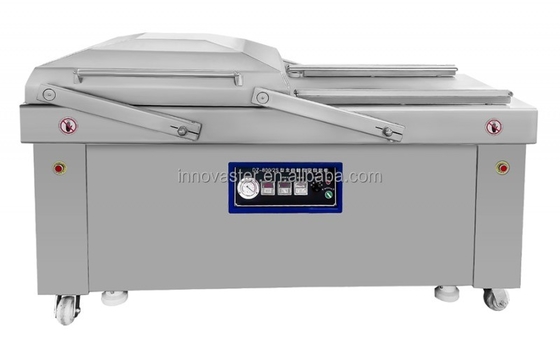

Chamber Vacuum Packing Machine
Seamless welding vacuum chamber,double locking system for chamber lid support.9. Overlap sealing function available.
Flat silicone strip,sealing bar length 600mm&800mm for options.
BUSCH vacuum pump, 100-200m3/h.
Microcomputer control system & electrical box are waterproof.
