Product Details:
|
| Applicable Industries: | Food & Beverage Shops, Food Shop, Hotels, Restaurant | Showroom Location: | Egypt, Russia, UAE |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel, Pump | Condition: | New |
| Type: | Washing Machine, Fully Automatic | Voltage: | 380/480V |
| Power: | 18kw | Weight: | 650 KG |
| Dimension(L*W*H): | 6000*2800*2200 | Year: | 2021 |
| Warranty: | 1 Year | Name: | Washer Machine |
| Application: | Pallet Washing | Material: | SUS304 Stainless Steel |
| Feature: | Customized, Fast Operation | Usage: | Industrial Washer |
| Color: | Silver | Package: | Wooden Case Packing |
| MOQ: | 1set | Suitable For: | Pallet Washing |

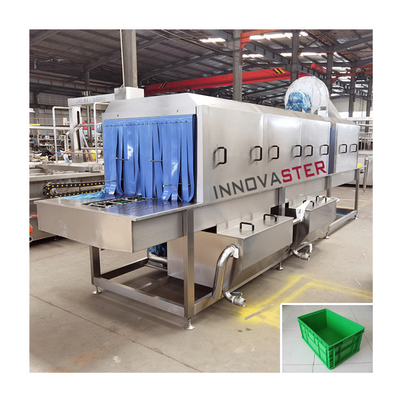

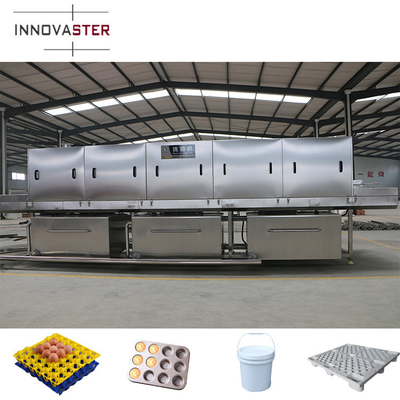

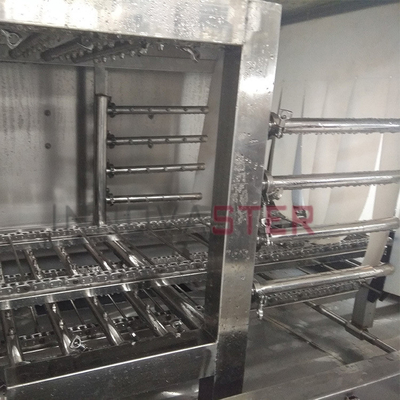

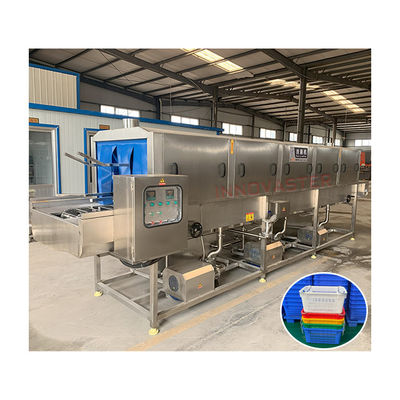

The Tunnel series is a surface treatment spray washing tunnel designed in a stainless steel material that has a combination of a one or more stages. It is for washing boxes, containers and baskets, providing perfect results even when washing a significant number of baskets per day. Excellent washing results are provided by special side washers with self-cleaning nozzles. Optionally, a drying section can be supplied, providing a minimum percentage of humidity at the outlet, which allows the use of baskets and containers immediately after washing.
| Name | One stage | Two stage | Three stage | Five stage |
| Capacity(Pc/h) | 100-300 | 300-500 | 600-800 | 800-1000 |
| Size(mm) | 2900*1700*1700 | 4500*1700*1700 | 6100*1700*1700 | 8900*1700*1700 |
| Thickness(mm) | 3 | |||
| Material | Sus304 | |||
| Power Supply | 380/50HZ, or customized | |||
| Total Power(kw) | 9 | 16.5 | 19.5 | 34.5 |
| Steam Consumption | 0.3T/h | |||
| Water Consumption | 0.5CBM/Tank | |||
| Water Supply Pressure | 0.4Mpa | |||
| Steam Pressure | 0.6Mpa | |||
| Drive Motor | Frequency Control | |||
| Electricity Mode | 15kw/electrothermal tube | |||
